Background
A few
years ago I wanted to change the stock pick-ups in my guitar. I had
soldered before, so that was not a chore. However, the idea that I
was going to be locked into a circuit was something that I wanted
to address. I wanted the ability to tinker with my guitar's tone by
changing any of its components, but the soldering and desoldering
in order to test the tone that achieved with my changes was making
it a chore.
Connectour is the device that was developed to enable the
solder-less attachment of guitar pick-ups and other guitar circuit
components. It is for the Do It Yourselfers and the guitar
technicians who want to provide his/her guitar with a custom tone.
Connnectour allows temporary connections to any portion of a
guitar's circuitry (pots, caps, switches, pick-ups, etc).
I wanted to find my tone while actually playing my instrument, so
that I could spend time testing it over an extended period, instead
of only testing it on a workbench. When I found my tone, I would
not need to make any changes to make my tone permanent. The 9-pin
& 12-pin units were designed to fit under a single of
double-coil pickup. My Charvel has had the 39-pin unit inside it
since 1996. I like to
say,
"When you
find your tone, leave it alone."
The benefits are that the guitarist can: make changes to any
portion of his/her guitar's circuit; test, and then change any part
of that circuit; change the circuit over and over until the desired
tone has been achieved (while the guitar is able to be used
professionally); and after mastering his/her sound, the connections
can be left in place as a permanent upgrade.
Connectour enables multiple-pole connection to any wire that has
been attached to the "in-parallel poles" so that connection and
disconnection of components are independent of each other.
Connectour reduces the time and effort necessary to find the tone
that he/she has been looking to create though the use of a pencil
instead of a soldering iron.
The units are compact and sturdy, being constructed of aluminum
block. The poles are color-coded to help with the diagramming of
your circuit
What is
it?
This
invention will allow electric stringed instrument's pickups, and
the electronic components of the instrument's circuitry to be
easily attached, modified, and removed. This invention makes it
possible to connect pickups, switches, potentiometers, and other
electronic components in a modular
manner.
Why is it
necessary?
The
invention will allow the easy attachment, modification and removal
of the electronic components of an electric stringed instrument.
The ability to change pickups and other components of an electric
stringed instrument will allow a musician to change the tonal
qualities that are produced by the electronics of his/her electric
stringed instrument.
This invention makes it possible to attach, modify, and replace
pickups and sound/signal altering electronics. It also makes it
possible to interchange or re-configure the wiring of: pickups;
switches; potentiometers; and/or other electronic components. All
modifications to the electronics of an electric stringed instrument
can be performed by using a screwdriver when using this invention.
As an example, a musician can now replace a distortion-producing
pickup with one that has no such distortion-producing properties.
All this can achieved in a very short amount of time, without
soldering any of the electronic
components.
Why is it
good/better?
This
invention is specifically designed to make it possible for
musicians to modify the sound capabilities that the electronics of
his/her electric stringed instrument provide. In the past, the
pickups and electronic components had always been permanent.
However, replacing the pickups and other electronic components is
necessary to change the fundamentals of an electric stringed
instrument's sound capabilities.
This invention can be used by all electric stringed instruments;
all pickups; and all types of electronic components. The
universality of this invention allows a musician to change his/her
equipment easily and quickly. Therefore, different circuit
configurations can be tested and installed. It also allows repairs
to the electronic circuit of the instrument to be performed in
minutes; with only the use of a
screwdriver.
How does it
work?
This
system is based on the use of a spring-loaded socket/connector that
allows access to a number of "poles". This socket/connector enables
the wire leads of pickups, and other elements of the electronic
circuit loop, to be immediately installed. This can be done simply
by placing the wire into the desired pole of the socket/connector.
The socket/connector is configured such that each pole has more
than one "access point". This means that the desired pole can make
contact with more than one element in the electronic circuit loop
by having these elements connected to the multiple access points of
the desired pole. This benefit eliminates the need to solder
elements together. By eliminating soldering, elements can be added,
changed, or removed whenever the user desires. This benefit also
enables the user to easily change the configuration of the
electronic circuit loop; thus changing the sound quality of the
instrument. Now, a musician can exchange pickups in a few minutes;
and in so doing, change the sound quality of his/her instrument.
This device allows all components in the electronic circuit loop
(potentiometers, switches, magnetic transducers) to be attached and
re-configured at will.
All Connectour versions can be incorporated into any presently, or
formerly manufactured electric stringed
instrument.
|
|
Connectour - 39 pin
version

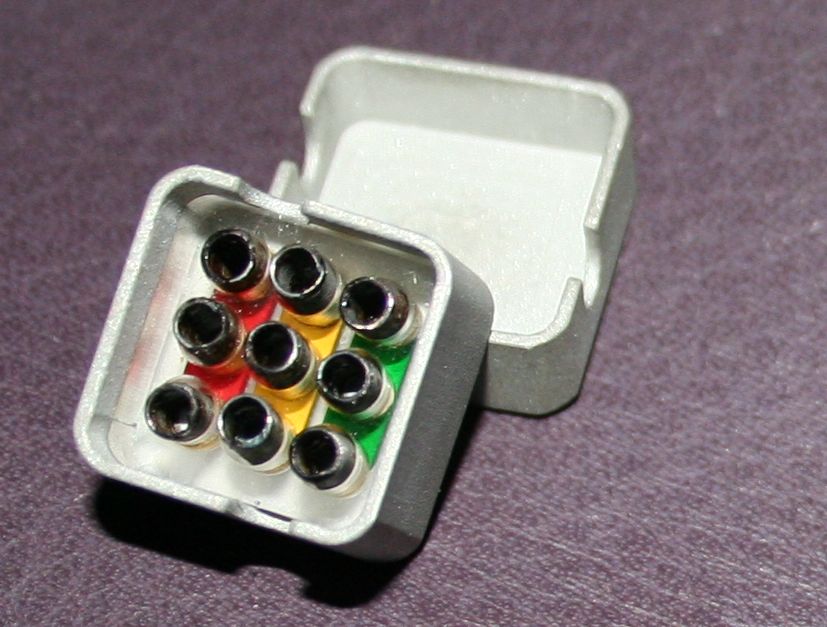

Connectour - 9 pin
version

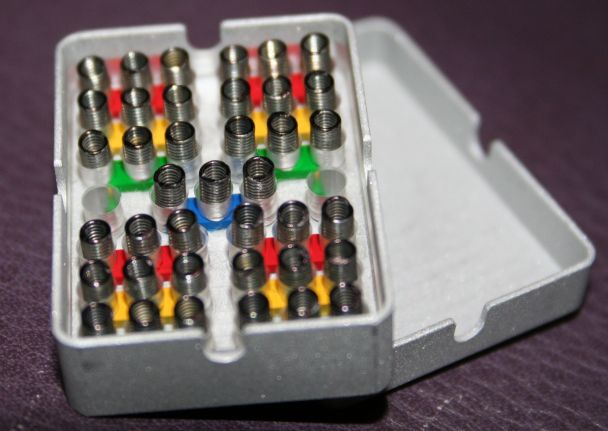

Connectour -
12 & 9 pin
versions
Connectour -
39 pin version |

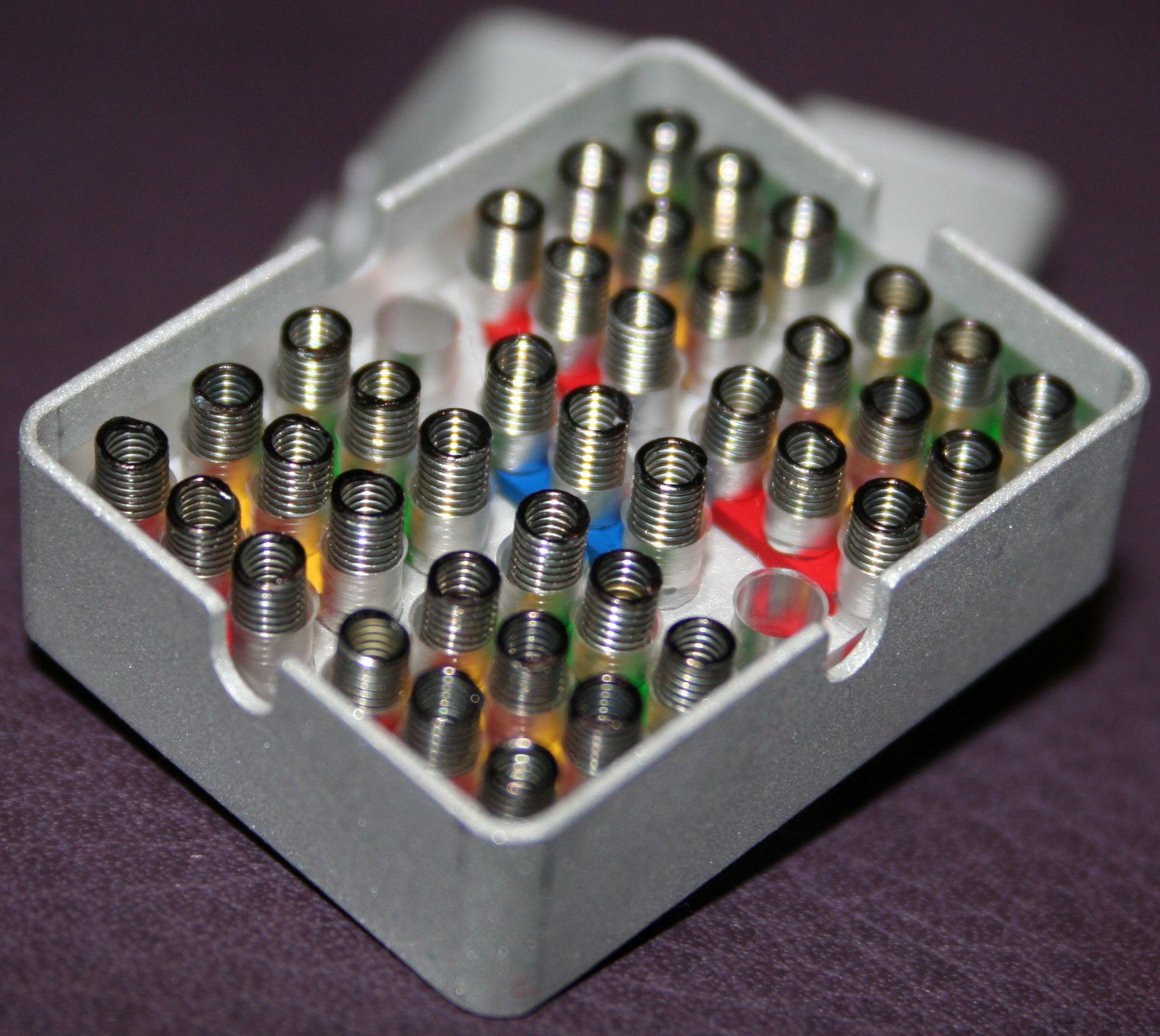

Connectour - 39 pin
